Pcb Fabrication Capabilities

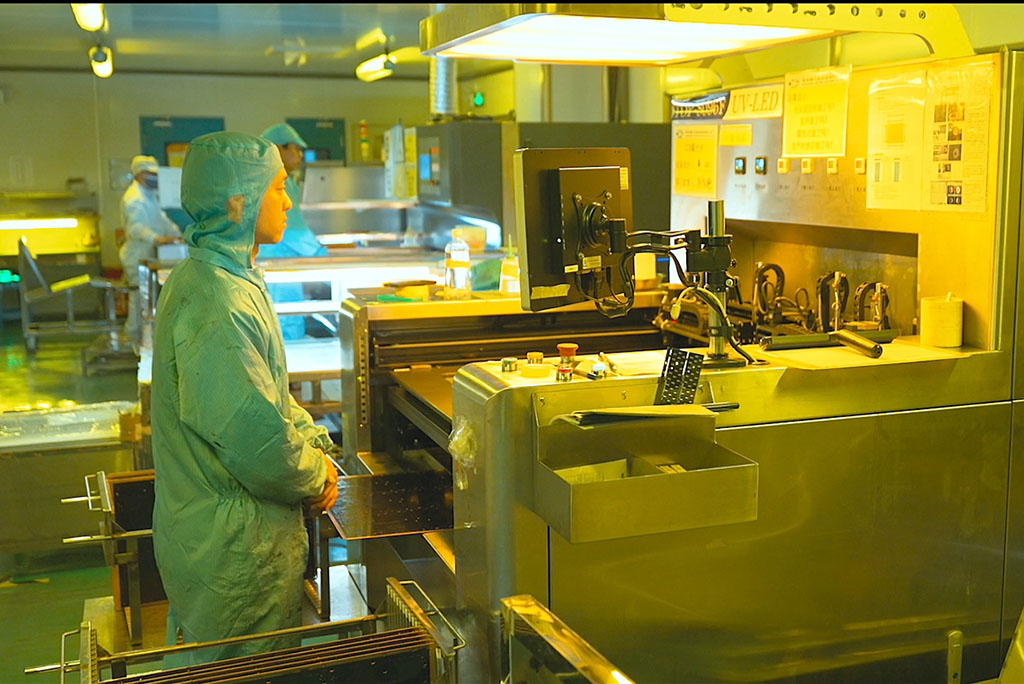

FAST TURN PCBA is committed to offering the highest quality printed circuit boards at the most competitive pricing. We aim to provide customer excellence on all orders, whether you need a simple prototype, mass production, or a time-critical and technologically complex multi-layer printed circuit board product. We manufacture based on IPC guidelines and comply with ISO9001 and RoHS/REACH standards.
FAST TURN PCBs with various materials, including conventional FR4, high TG FR4, high-frequency FR4, high-speed FR4, halogen-free FR4, polyimide, ceramic, alumina, high thermal conductive material, aluminium/copper-based material, PTFE, etc. PCB surface finish includes HASL, ENIG, ENEPIG, OSP, immersion gold/tin/silver, hard gold plating, soft gold plating, carbon ink, blue mask, etc.
| Type | Rigid | Flex | Rigid-Flex |
|---|---|---|---|
| Layer | 2-50 Layer | 1-14 Layer | 2-18 Layer |
| Max Size | 600 x 500mm | 1200 x 250mm | 710 x 400mm |
| Board Thickness | 0.2-7.0mm | 0.07-4.0mm | 0.1-5.0mm |
| Copper Thickness | 0.33-12oz | 0.33-1oz | 0.33-6oz |
| Min Trace & Spacing | 2/2.5mil | 2/2.5mil | 3/3mil |
| Min. hole | 4mil | 4mil | 4mil |
| Aspect Ratio | 30: 1 | 10: 1 | 16: 1 |
| Impedance Tol. | Normal±10% ，Best ±5% | Normal±10% ，Best ±5% | Normal±10% ，Best ±5% |
| Outline Tol. | Normal±0.15MM ，Best ±0.1MM | Normal±0.15MM ，Best ±0.1MM | Normal±0.15MM ，Best ±0.1MM |
| Material | ShengYi S1000-2, S1141, IT180A, AL base, Copper base, RO4350B, RO4003C, RO3003, RT5880, RT6002, RT6010, TMM10/10i, VT901, Dupont PI, ShengYi PI, ISOLA FR408HR, ISOLA 370HR, TU872LK,M4, M6 and etc. | ShengYi S1000-2, S1141, IT180A, AL base, Copper base, RO4350B, RO4003C, RO3003, RT5880, RT6002, RT6010, TMM10/10i, VT901, Dupont PI, ShengYi PI, ISOLA FR408HR, ISOLA 370HR, TU872LK,M4, M6 and etc. | ShengYi S1000-2, S1141, IT180A, AL base, Copper base, RO4350B, RO4003C, RO3003, RT5880, RT6002, RT6010, TMM10/10i, VT901, Dupont PI, ShengYi PI, ISOLA FR408HR, ISOLA 370HR, TU872LK,M4, M6 and etc. |
| Surface finish | ENIG, HASL, HASL LF, Gold Finger, Hard Gold, Flash Gold, Immersion Silver, Immersion Tin, OSP, ENEPIG and etc. | ENIG, HASL, HASL LF, Gold Finger, Hard Gold, Flash Gold, Immersion Silver, Immersion Tin, OSP, ENEPIG and etc. | ENIG, HASL, HASL LF, Gold Finger, Hard Gold, Flash Gold, Immersion Silver, Immersion Tin, OSP, ENEPIG and etc. |
