PCB Service
FAST TURN PCB is an international manufacturing company specializing in the field of PCB, committed to providing high-quality and customized PCB solutions for global customers.
We have advanced production equipment and technical teams in PCB design and manufacturing.From raw material procurement to finished product delivery, every link undergoes strict quality control.
We good at multi-layer PCB (4-50 layers), HDI blind & buried board, High frequency material board, Rigid-flex board, certificated by ISO 9001、ISO13485、UL(E520899), Rohs & Reach. Every pcb board will do 100% inner and outer layer AOI, E-test, via hole wall test etc.
Our products are widely used in various fields such as communication, healthcare, automotive, and consumer electronics. With stable performance and excellent quality, we have won unanimous praise from domestic and foreign customers.
Our Advantages
★： Excellent Service
4-hour rapid response service.
★：Multiple Varieties
High multi-layer (4-50 layers), HDI, rigid-flex boards, semiconductor test boards,etc.
★：High Quality
Widely used in industrial control, medical device, aviation and automotive electronics and other fields.
★：Rapid Delivery
The fastest delivery in urgent cases is within 24 hours.
★：Regular Special Materials
RT5880, RT6002, RT6010, RO3003, TU872, M4, M6, ISOLA 370HR, FR408HR, etc.
PCBA capability
The continuous upgrading of the process manufacturing capacity is our most competitive advantage. The upgrading of manufacturing capacity also means providing customers with the most advanced production technologies and reducing costs for customers.
| Capability | Parameter |
|---|---|
| Material Type |
Ordinary Tg FR4：Shengyi, ITEQ, KB, Nanya. Ordinary Tg FR4 (halogen free)：Shengyi S1000,ITEQ IT158. High Tg FR4 (halogen free)：Shengyi S1000-2,S1170，EMC EM827，Isola 370HR，ITEQ IT180A，Panasonic R1755V. High performance：EMC EM828,EM888(S),EM888(K)，Isola FR408, FR408HR，lsola 1-Speed, 1-Tera MTNelco N4000-13EP，EPSI Panasonic R5775 Megtron 6. High frequency material：Rogers RO4350,RO3010，Taconic RF-30, RF-35, TLC, TLX, TLY，Taconic 601,602.603,605. Halogen free sheet metal：EMC EM285,EM370(D)，SYL S1170G Metal Substrate：Shengyi SAR20, Yugu YGA. |
| Surface Treatment |
ENIG Flash Gold Hard Gold Gold Finger(G/F) HAL/HAL Lead Free Others：ENEPIG, OSP, I-Ag, I-Tin, ENIG+G/F, ENIG+OSP, ENIG+Selective Hard Gold, Flash Gold+Selective Hard Gold |
| Processing thickness |
ENIG:0.2-6.5mm I-Tin:0.3-3.0mm I-Ag:0.3-3.0mm HAL/HAL Lead Free:0.6-3.5mm OSP:0.3-3.0mm Flash Gold:0.2-5.0mm |
| Max Processing Size |
HAL/HAL Lead Free:520mm x 650mm ENIG:520mm x 800mm I-Ag: Single Side<=500mm OSP: Single Side<=500mm Flash Gold:450mm x 500mm |
| Min. Processed Size |
I-Tin: 60mm x 80mm I-Ag: 60mm x 80mm HAL/HAL lead free:150mm x 230mm OSP: 60mm x 80mm |
| Wirewidth/Spacing （Outer layer） |
1/2OZ：3/3mil 1OZ: 3/4mil 2OZ: 4/5mil 3OZ: 5/8mil 4OZ: 6/11mil 5OZ: 7/13.5mil 6OZ: 8/15mil 7OZ: 9/18mil 8OZ: 10/21mil 9OZ: 11/24mil 10OZ: 12/27mil |
| Wirewidth/Spacing （Outer layer） |
1/3OZ-based copper: 3/3 mil 1/2OZ-based copper: 3.5/3.5 mil 1OZ-based copper: 4.5/5 mil 1.43OZ-based copper (positive):4.5/6 1.43OZ-based copper (negative):5/7 2OZ-based copper: 6/7 mil 3OZ-based copper: 6/10 mil 4OZ-based copper: 7.5/13mil 5OZ-based copper: 9/16mil 6OZ-based copper: 10/19mil 7OZ-based copper: 11/22mil 8OZ-based copper: 12/26mil 9OZ-based copper: 13/30mil 10OZ-based copper: 14/35mil |
| Solder Resist Character |
Solder Resist Ink Color：Green, Yellow, Black, Blue, Red, White, Purple, Green Matte Character Ink Colors：White, Yellow, Black Solder Mask Plu Via<=0.5mm |
| Metal Substrate |
Finished Plate Thickness:0.5-5.0mm Copper Thickness:0.5-10 OZ Metal Base Thickness:0.5-4.5mm Metal Base Material:AL: 1100/1050/2124/5052/6061 Copper: Purple Copper Pure Iron Profile Machining Accuracy:±0.03mm |
Case Presentation
We aim to fulfill the demands of our customer base for PCB fabrication services, including from Prototype PCB to all types of small-medium volume PCB and high-volume PCB production. The circuit boards we manufacture have been applied to various industries。
Production Environment & Equipment

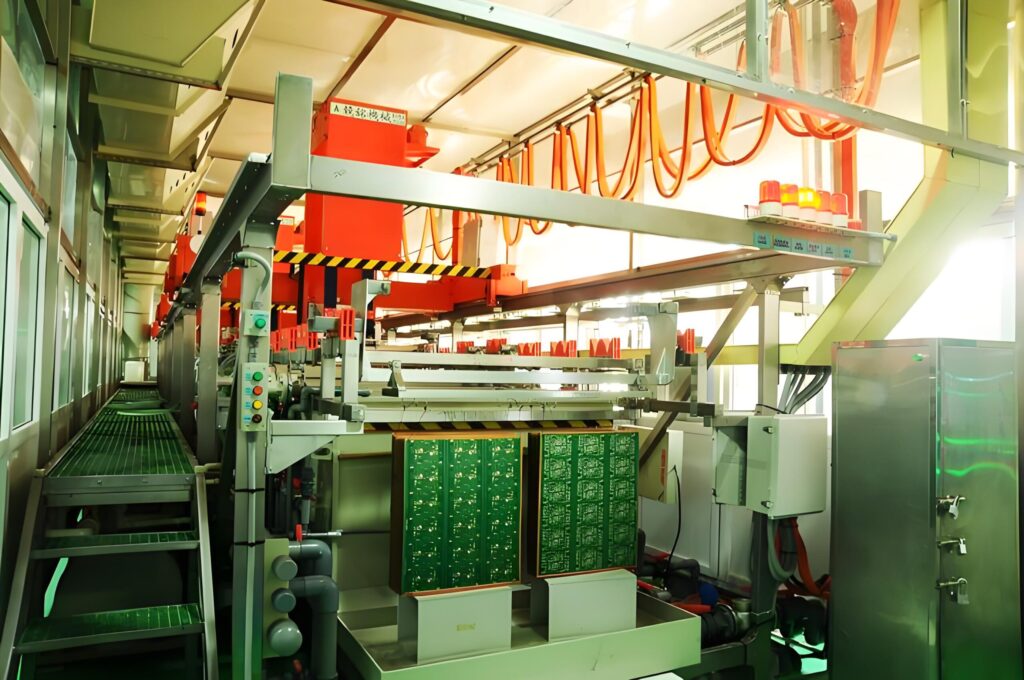

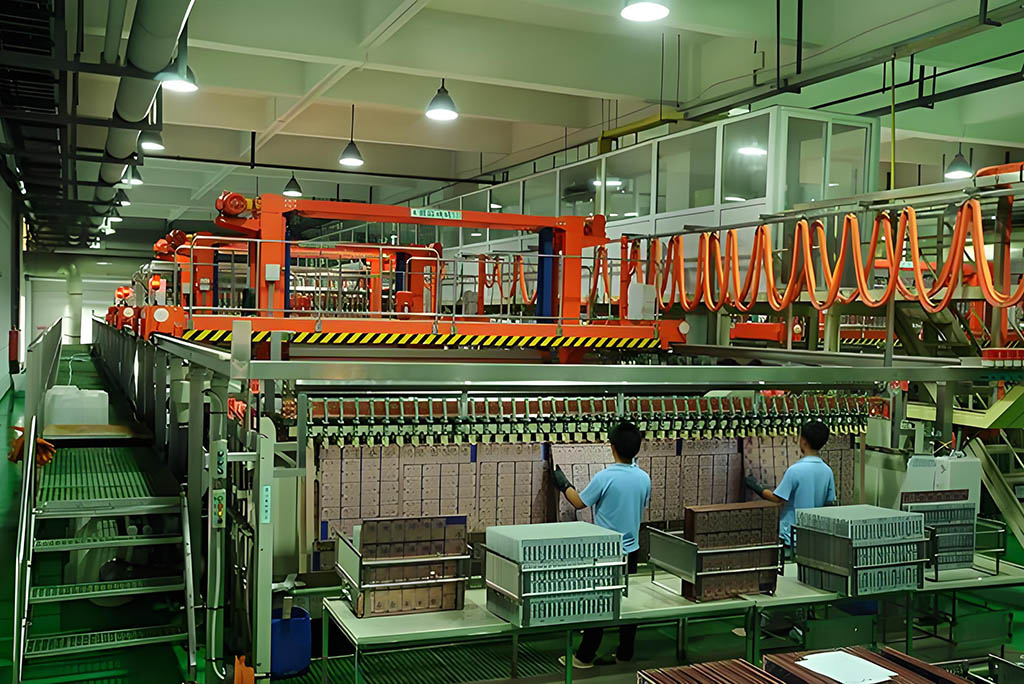

PLATING
PTH

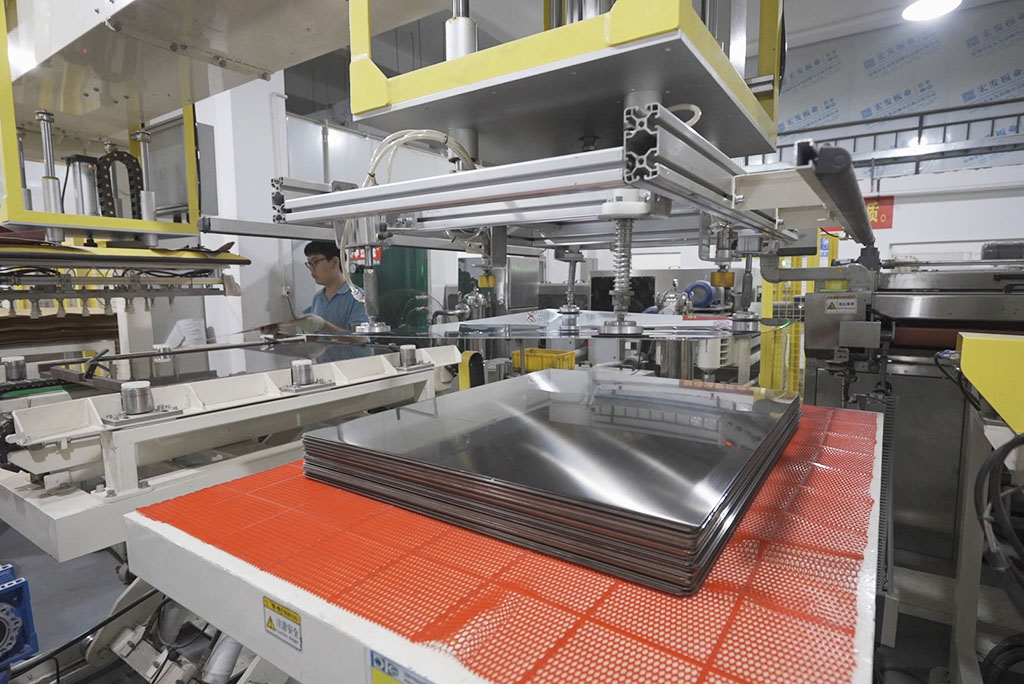

LAMINATION

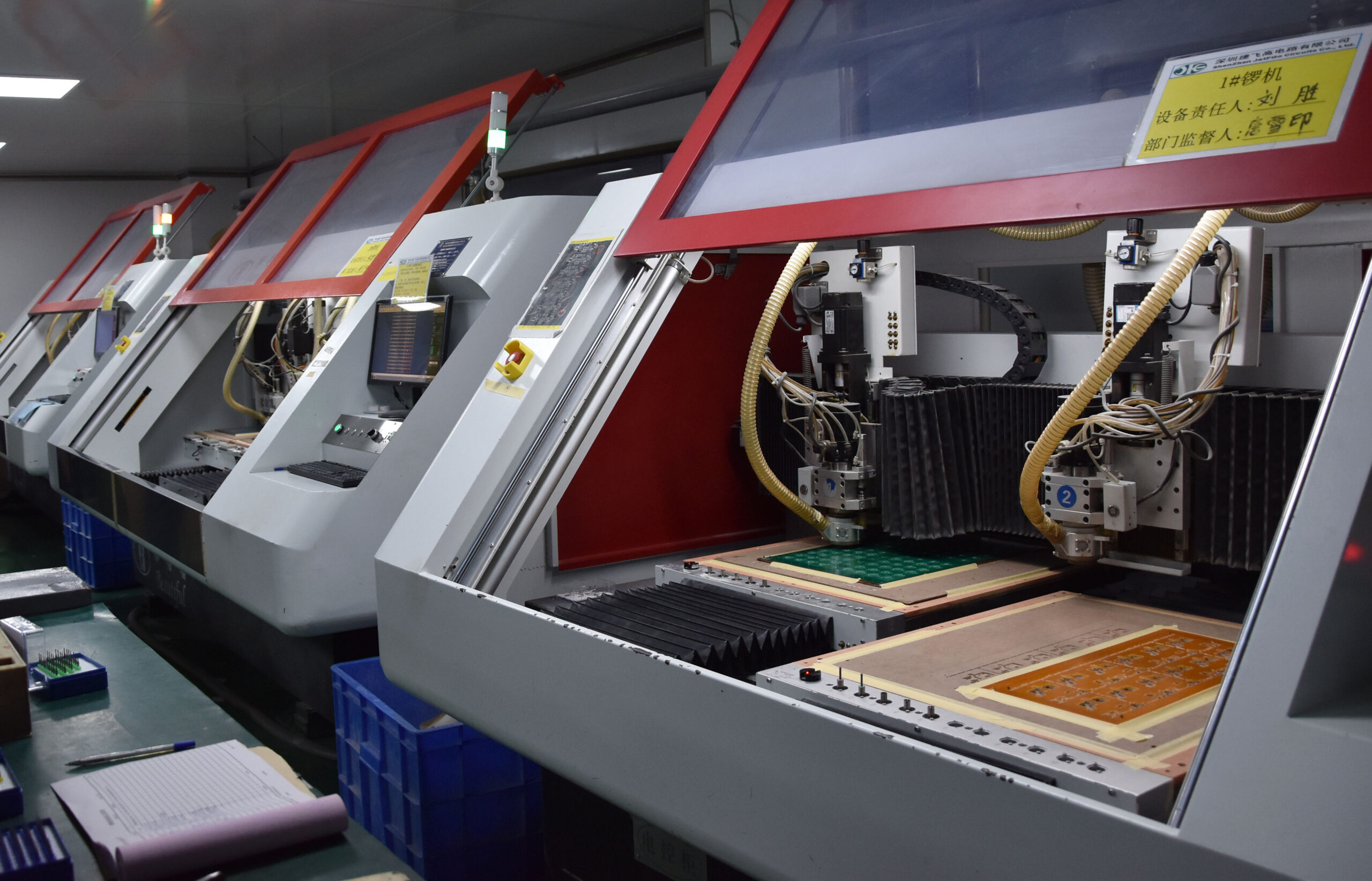

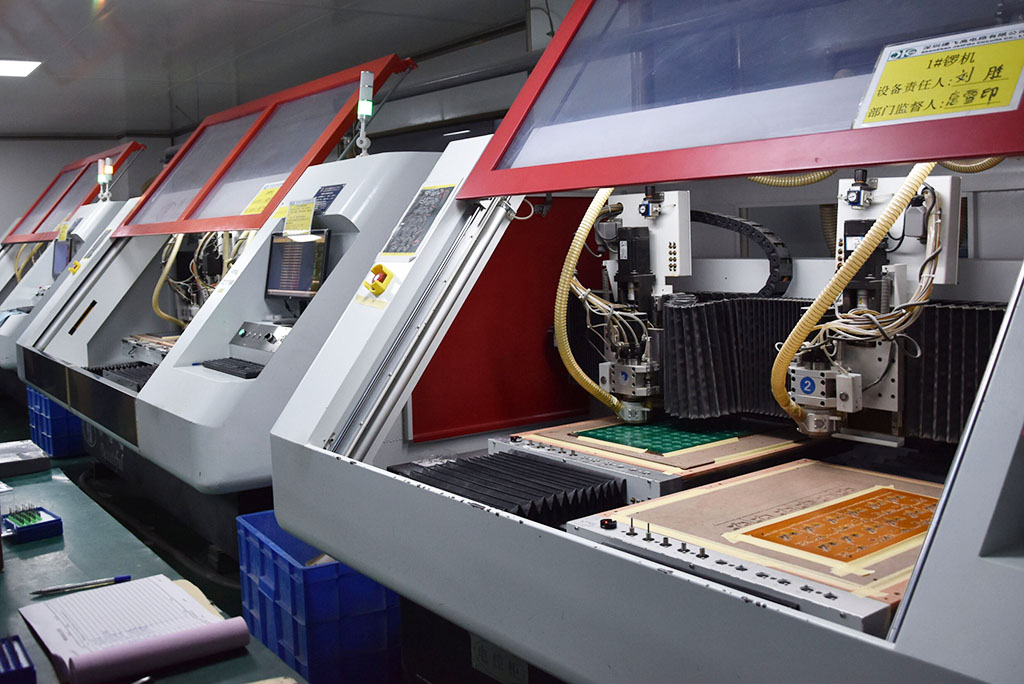

DRILL
ETCH

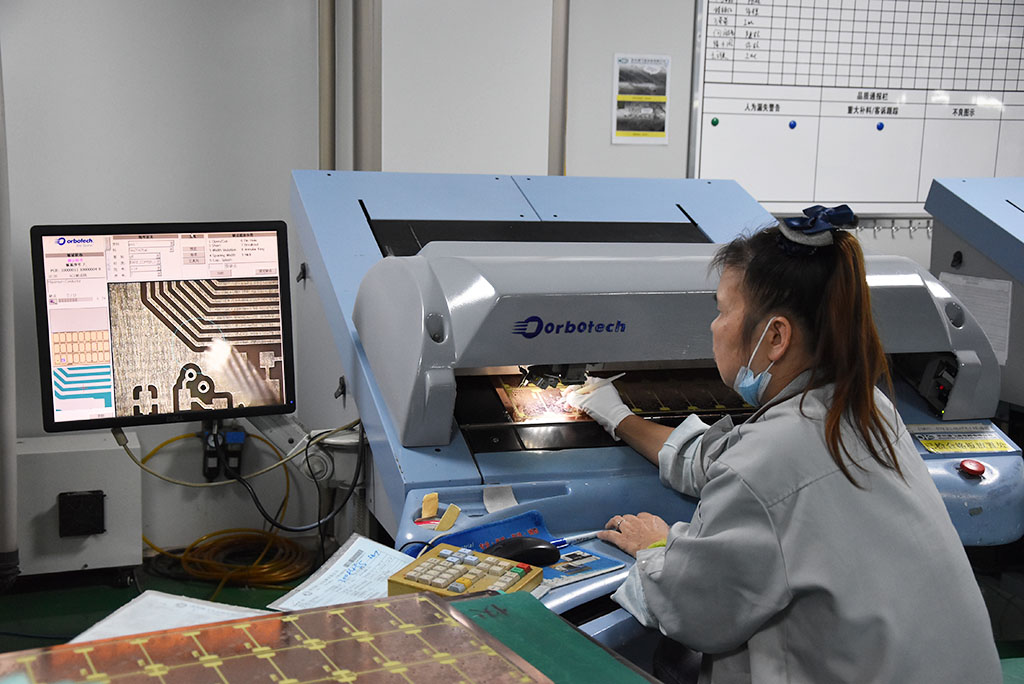

AOI
Put your parts into production today
All information and uploads are secure and confidential.
FAQ
PCB fabrication or PCB manufacturing is the process of transcribing a printed circuit board design onto the physical structure of the board. By the way, PCB assembly is the process of placing components onto the board to make it functional.
We have complete in-house capabilities and specialize in quick-turn, high-quality PCB manufacturing and assembly services. We offer rapid and on-time delivery at competitive prices. We assure you of guaranteed quality satisfaction by following a client-centric approach. There is no minimum order requirement as well.
You need to provide the following files for custom PCB fabrication:
PCB Gerber File – The Gerber file format is the standard for PCB fabrication. This standard file describes the PCB layers like solder masks, copper layers, etc. You can go for either .zip or .rar for inquiries or orders.
Drill File in Excellon format
Board Outline File – For routing the board edges, it has only the board’s outline, including any inner cut-outs.
panelization files
The overall cost depends on the complexity of the design and manufacturing of the printed circuit board. The number of layers, the type of materials, the manual labor work hours, required efforts, and the fabrication time is all considered for the overall cost calculation.
The turnaround time usually depends on the production quantity and difficulty factor. Another factor that needs to be considered is the ready availability of the raw materials.
Absolutely. If needed, we provides Turn-Key service. We can order your parts, manufacturer Printed Circuit Boards, assemble the PCBs, test them, and provide the completed PCBs to you.
We strive to offer the most competitive prices in the market by leveraging the extensive quality resources at our disposal.
Our goal is to ensure that our customers receive maximum value and recognition throughout our cooperation.
While we cannot guarantee the absolute lowest price in the market, we are committed to providing our customers with the best value for their purchase.
Our focus is on offering competitive prices that align with the quality and performance our customers expect.
We believe that the lowest price alone can be deceptive, as it may not always reflect the desired product quality or timely delivery.
Our priority is to deliver cost-effective products that meet our customers’ needs.
